Column Glass Components Specification

Bent Tempered
Not applicable by default

Features
Chemical resistance, Thermal shock resistance, Easy to clean

Finish Type
Fire polished, Annealed

Glass Type
Borosilicate 3.3

Flat Tempered
Available on request

Transparency
High transparency

Strength
High mechanical and thermal strength

Tolerance
0.1 mm

Structure
Cylindrical, Multi-port with accessories

Material
Borosilicate Glass

Thickness
Customizable (generally 3-10 mm)

Weight
Varies depending on size and configuration

Surface
Smooth

Density
2.23 Gram per cubic centimeter(g/cm3)

Composition
Silicon Dioxide (SiO2) with boron trioxide

Technique
Blown and precision engineered

Pattern
Clear, Transparent

Application
Used in laboratory columns, reactors, and distillation setups

Customization
Custom sizes and modifications available

Clarity
Optical clarity for process observation

Maximum Working Temperature
Up to 500C

Corrosion Resistance
Excellent, resistant to acids (except hydrofluoric acid)

Joint Type
Standard laboratory glass joints (ground/glass socket/spigot)

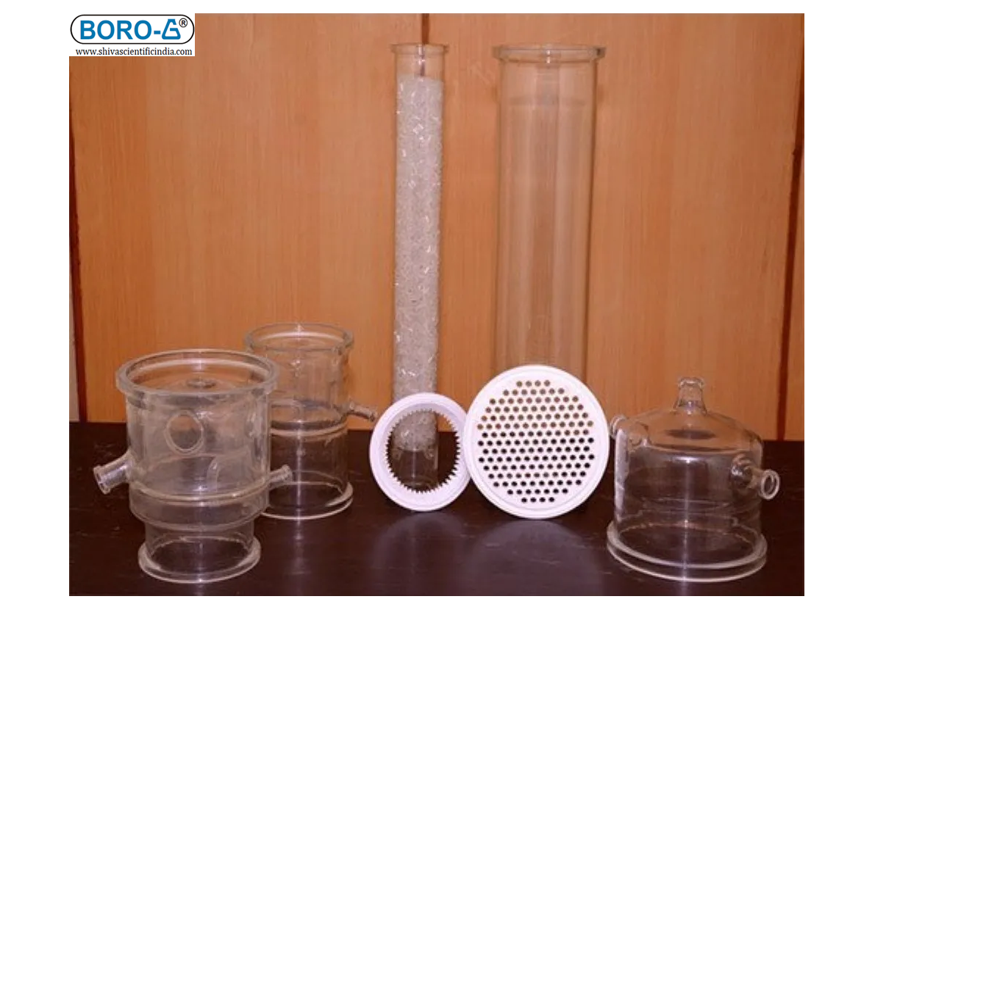

Column Glass Components About

Glass Column

In many operations like reaction, extraction & absorption, the transparency of glass is particular advantage. For such process a range of column components are available in Borosilicate glass which offers many advantages like:

Inert to almost all chemicals hence no risk of contamination.
Transparency allows visual monitoring of the process flow patterns, colour changes etc.
Almost universal resistance to corrosion
Smooth surface permits easy cleaning & prevents fouling
